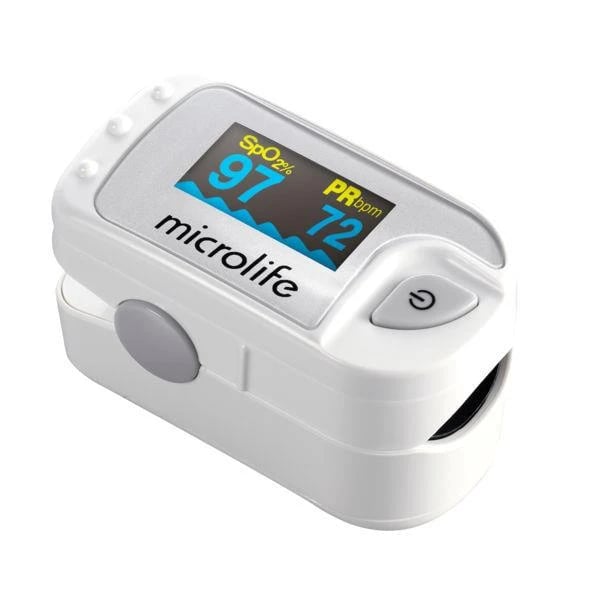

Microlife Oxy300 Pulse Oximeter

Microlife Oxy 300 Pulsioximeter, the Microlife OXY 300 finger pulse oximeter is a portable, non-invasive device intended for spot checking of arterial hemoglobin oxygen saturation (SpO2) and pulse rate in adult and pediatric patients. It is suitable for private use as well as for use in the medical sector (hospitals, hospital-type facilities).
1 pulse oximeter
2 AAA batteries
1 case
1 carrying strap
How to use
1. Insert the batteries as described in the “Inserting the batteries” section.
2. Insert the one finger side (nail up; index or middle finger recommended) into the finger opening of the device. Make sure to fully insert your finger so that the sensors are completely covered by your finger.
3. Release the device so that it fits around your finger.
4. Press the ON/OFF button 1 to turn on the device.
5. Don't move your finger during the test. It is recommended that you do not move your body while the device takes the reading.
6. The measurement values ​​will be shown on the display after a few seconds.
7. Remove your finger from the device. The display will indicate “Finger Out”.
8. The device automatically turns off about 8 seconds after the finger is removed from the device.
The height of bar graph 5 demonstrates the indication of pulse and signal strength. The bar must be greater than 30% for an adequate reading.
The device must be able to measure the pulse adequately to obtain an accurate SpO2 measurement. Check that nothing is obstructing the pulse measurement before relying on the SpO2 measurement.
The maximum application time in a single area should be less than 30 minutes, in order to ensure correct sensor alignment and skin integrity.
Product Specifications
Determine oxygen saturation (SpO2) and heart rate (pulse)Simple to operate and comfortable measurementLightweight and portableTwo-color OLED screen6 different display modes10 adjustable brightness levelsLow battery indicationAuto power offWith carrying strap
Model No.: OXY 300Size: 56 x 31 x 30.5 mmWeight: 56g (with batteries)Batteries: 2 units. Alkaline batteries 1.5 V, size AAAPulse rate measurement range: 30 ~ 250 bpmSpO2 measurement range: 70 ~ 100%
